Computer Room Devices

Devices in the Computer Room

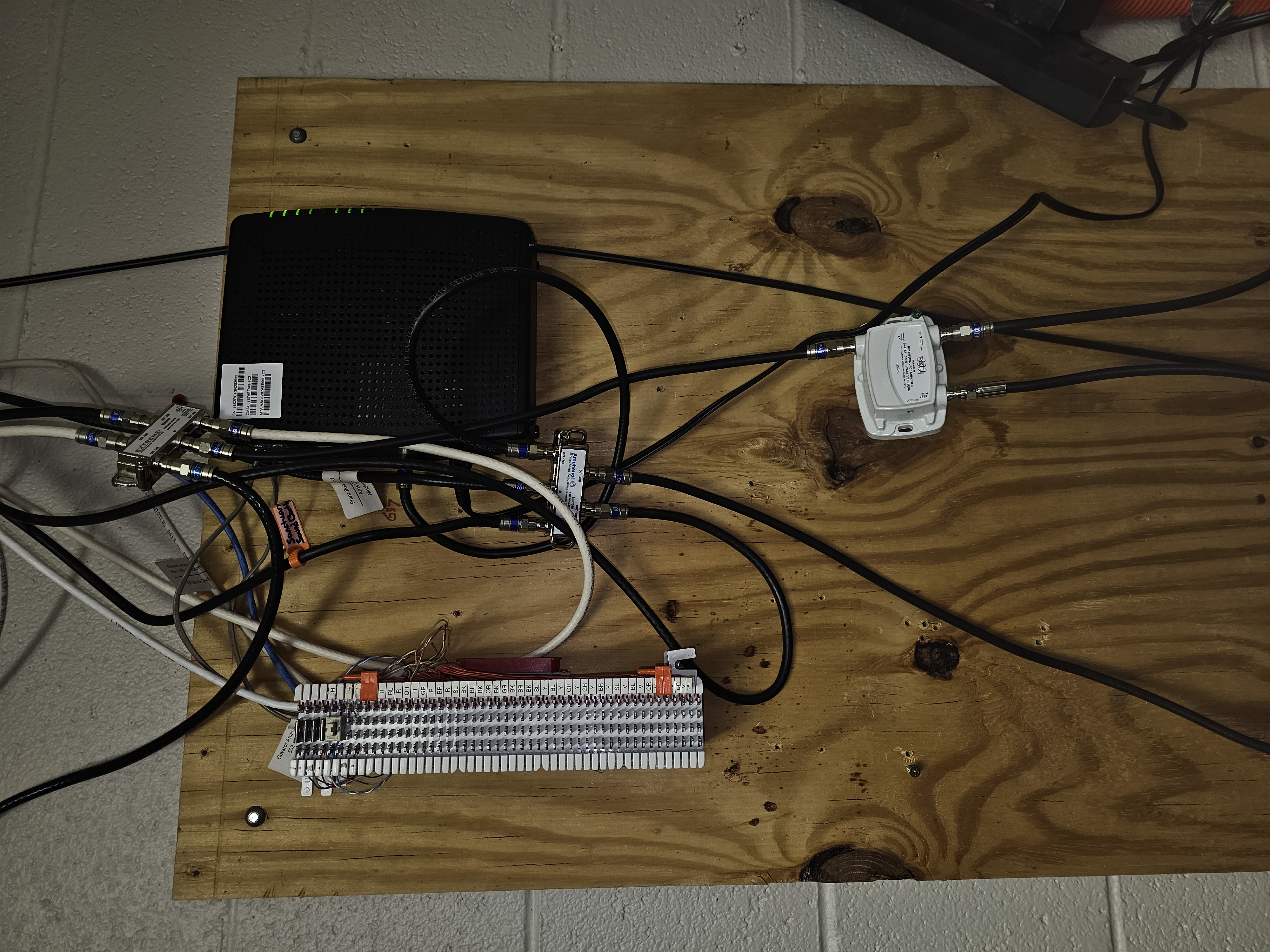

This board holds the Plant Board devices. These are used to provice a land line to the main elevator, and two TV lines, one for the front office and the other for the Tech Booth.
The black box is the TP-Link Gateway which connects our network to the AT&T fiber. The white Synology box is our NAS. Below these are a couple of lite duty UPSs and two Aries modems (not in use). The small black box under the red cable is the 2nd pfSense box which has been decommissioned and is pending re-purposing.

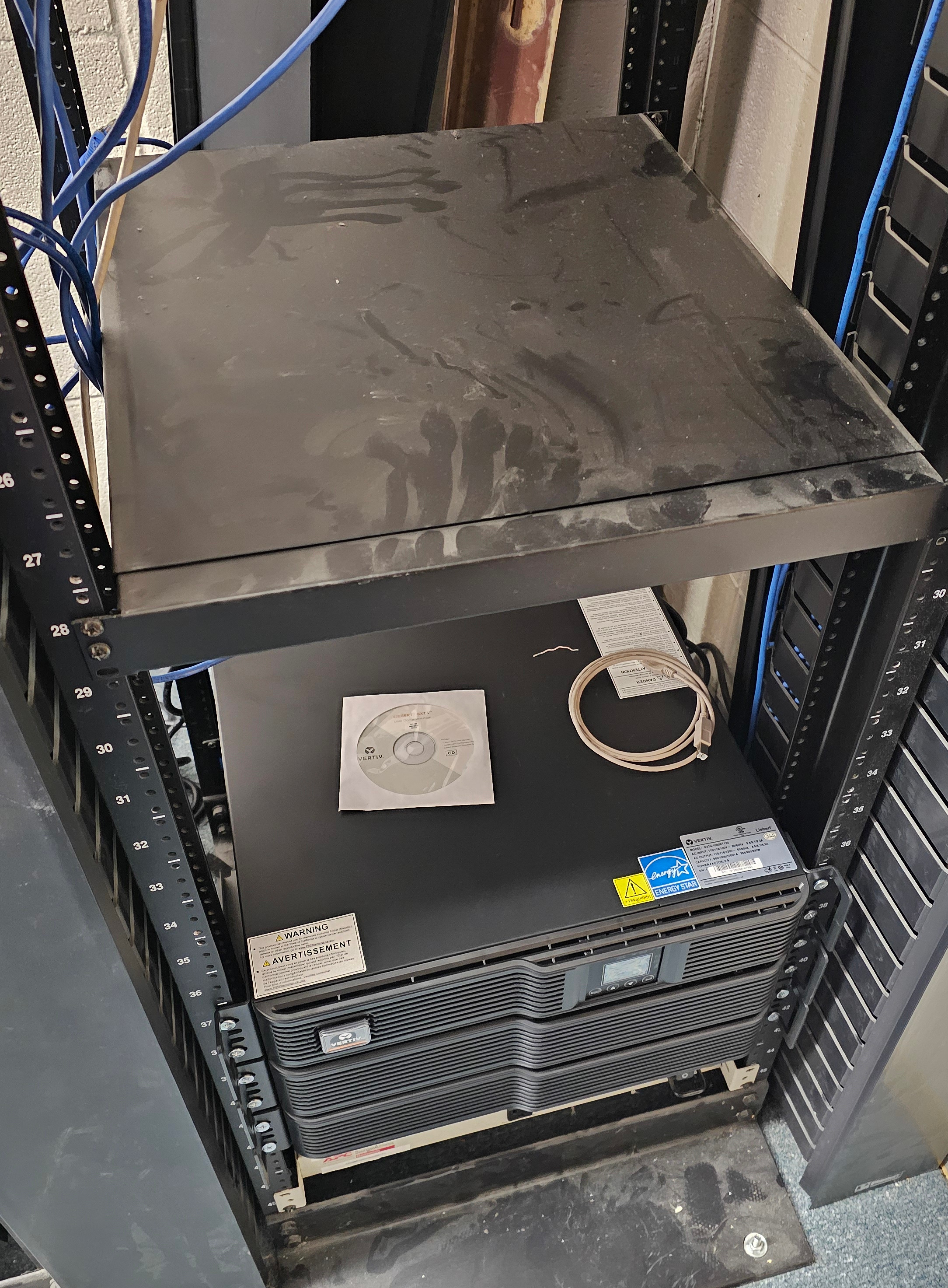

At the bottom of this rack are 3 high end UPSs that Jeff B. provided Feb. 2024.

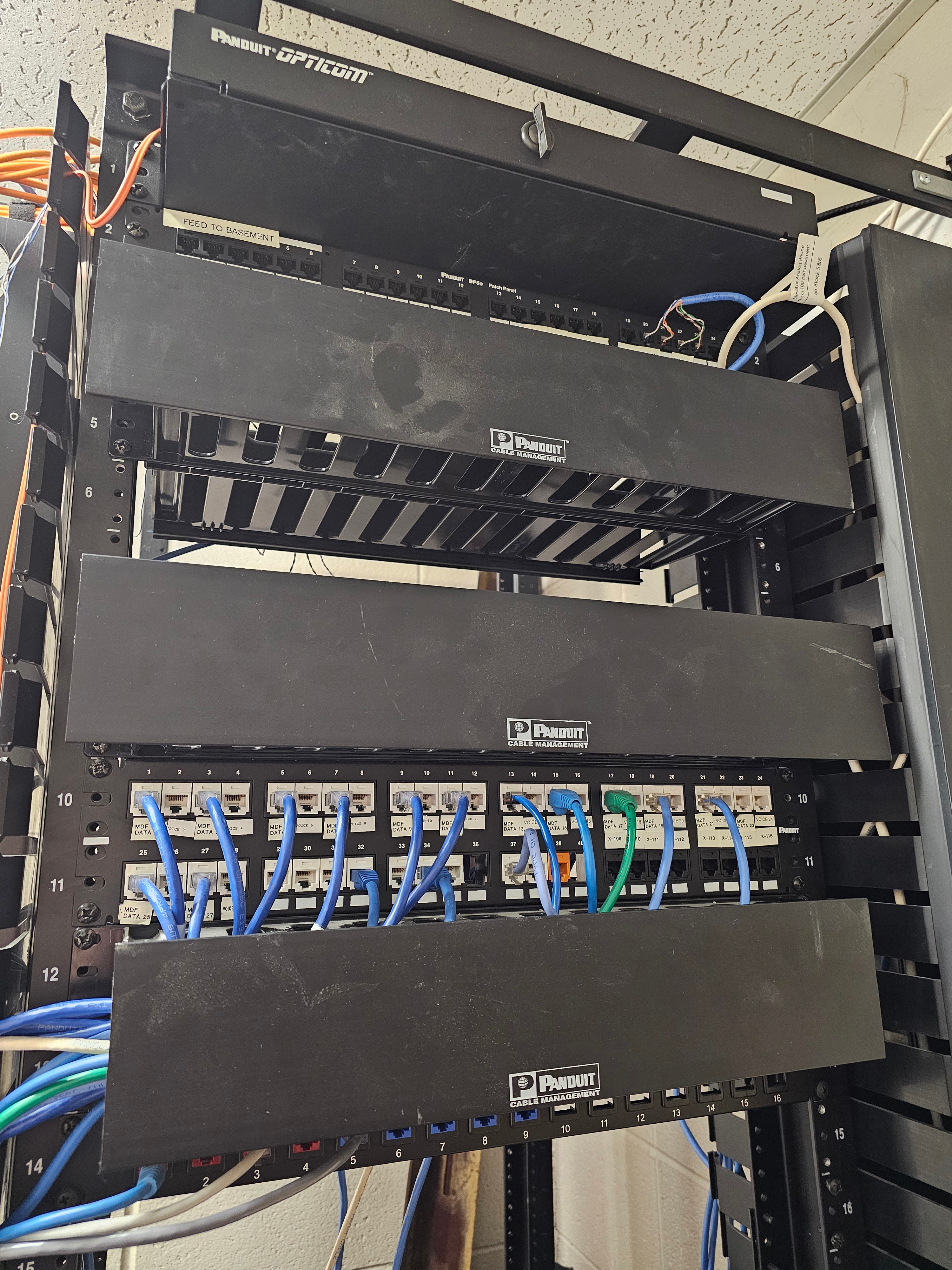

This is part of the punch down blocks that are patched over to the switches.

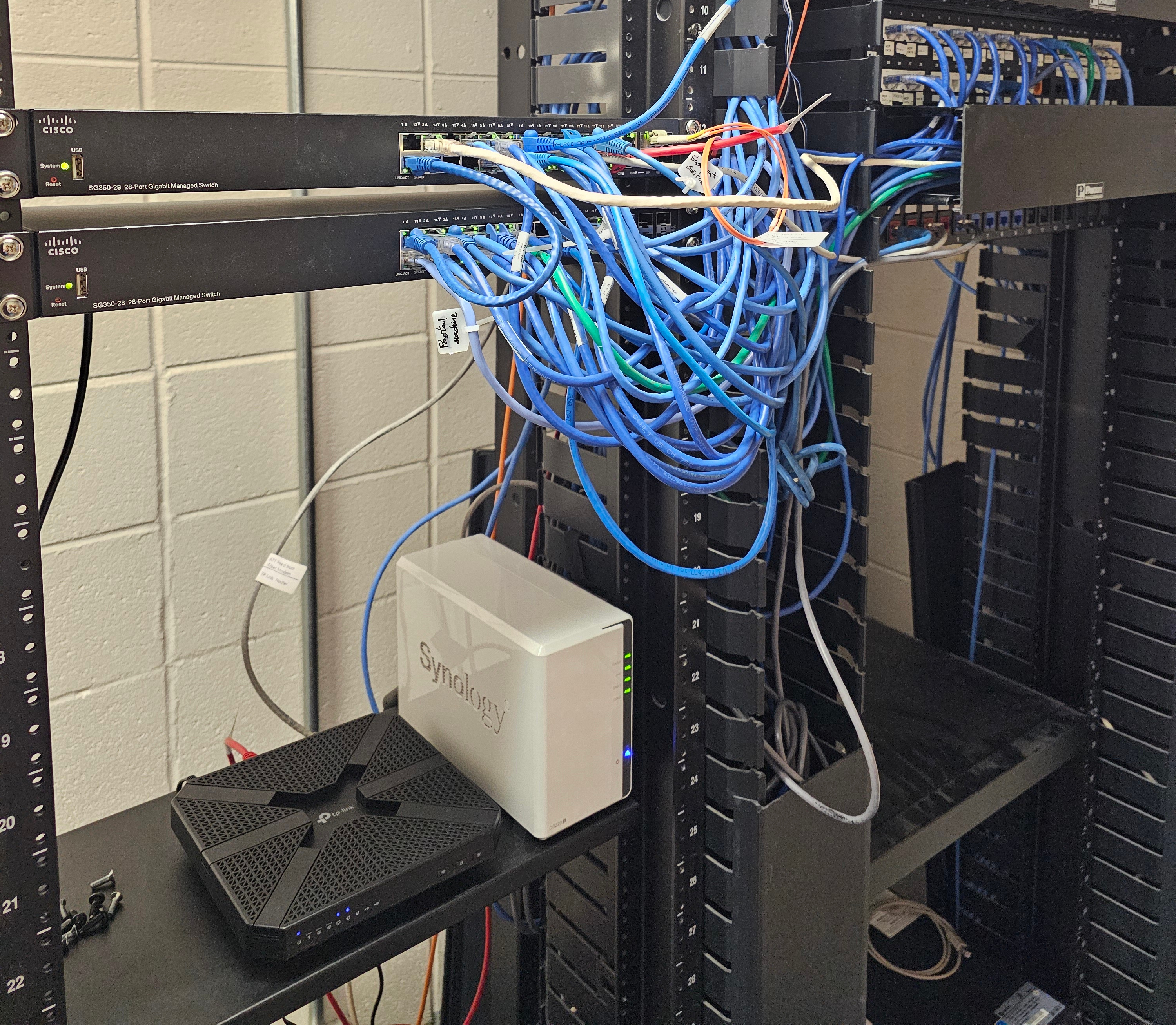

These are the two main Cisco switches and a Rat's nest of cabling.

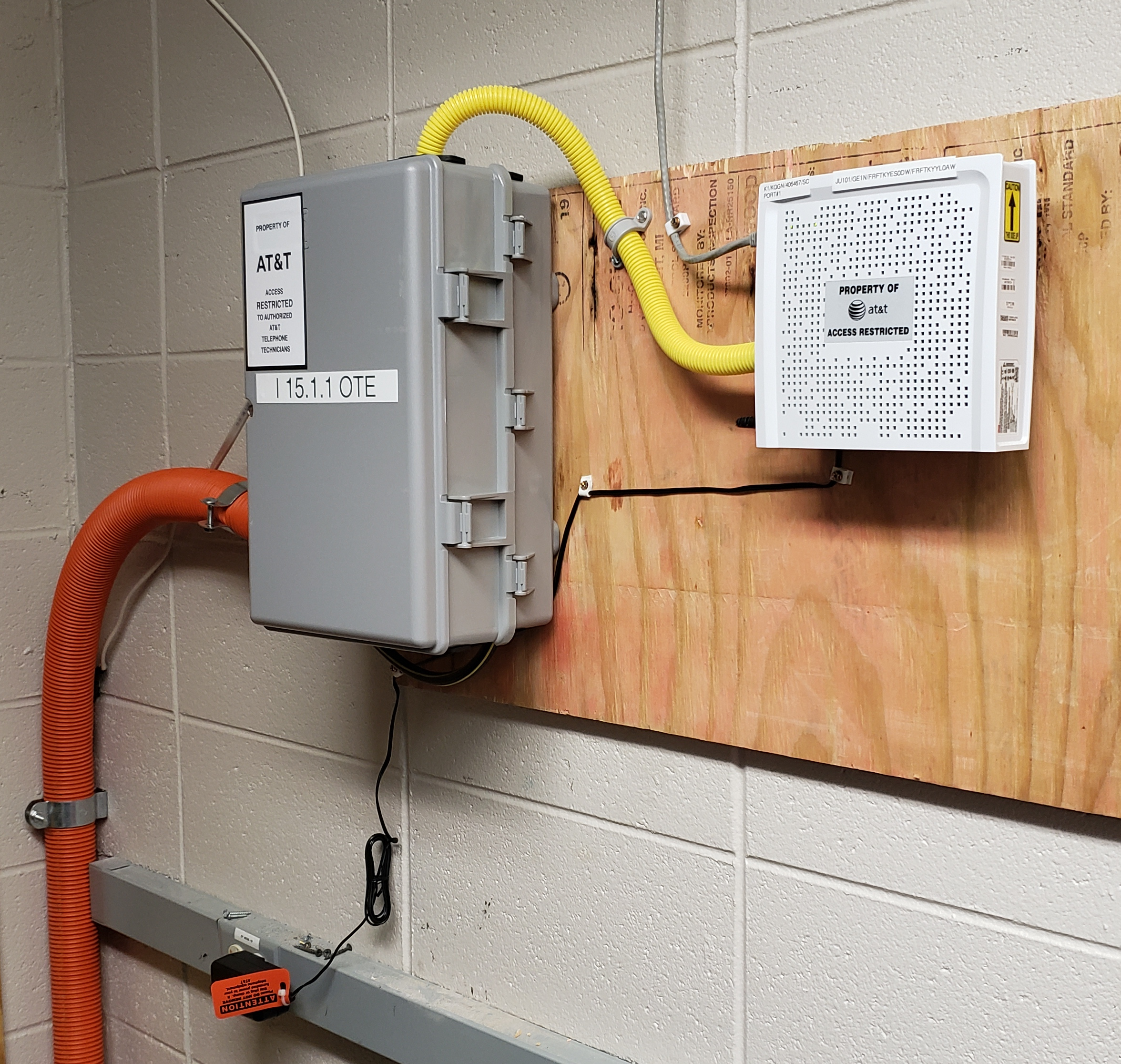

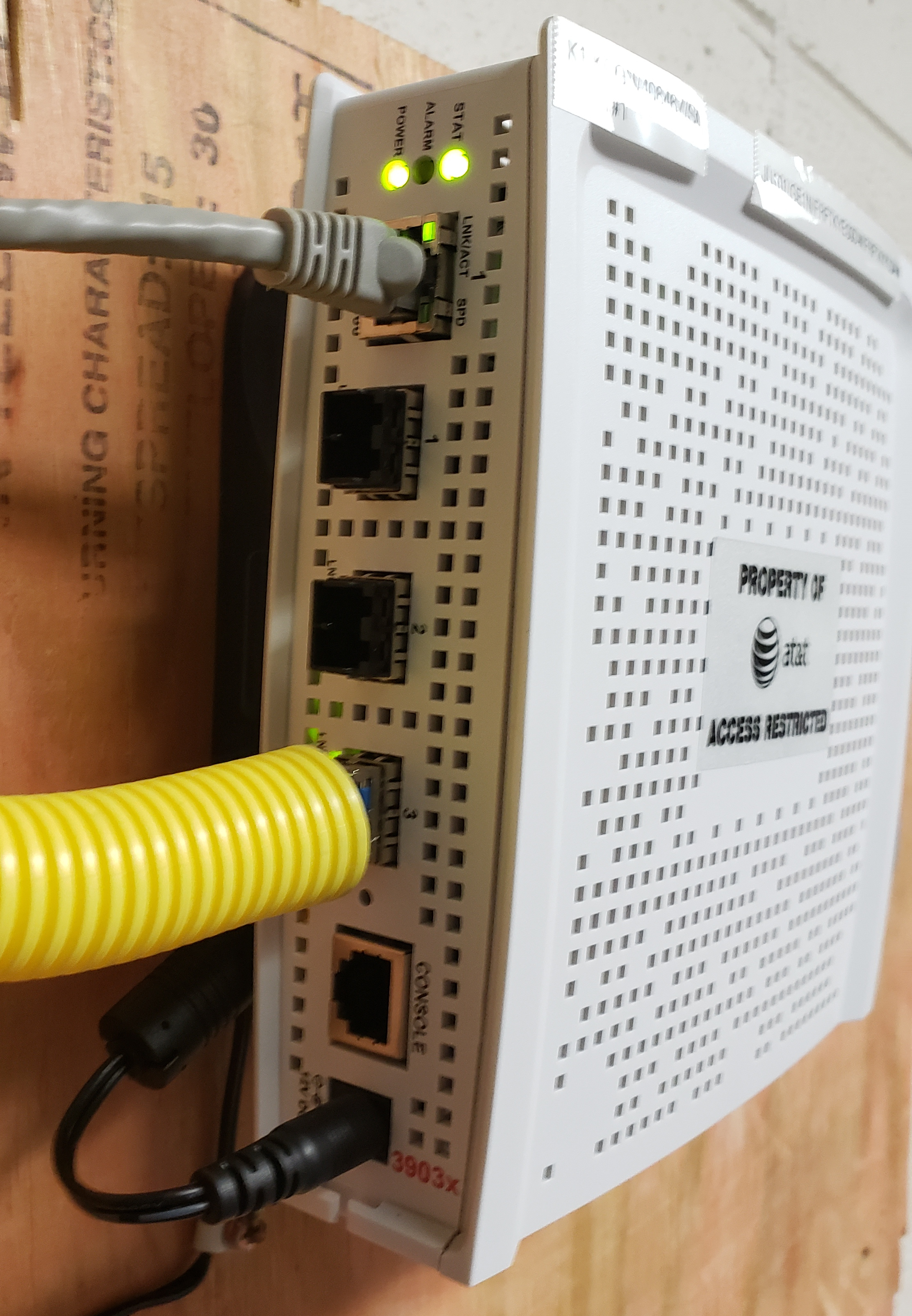

This is the east wall. This is all ATT equipment. The orange tube contains the actual fiber line that runs through the building from the outside southwest corner of the building. The grey ethernet line running up from the white box runs across the rack bar and around to the ATT router, port GE 01.

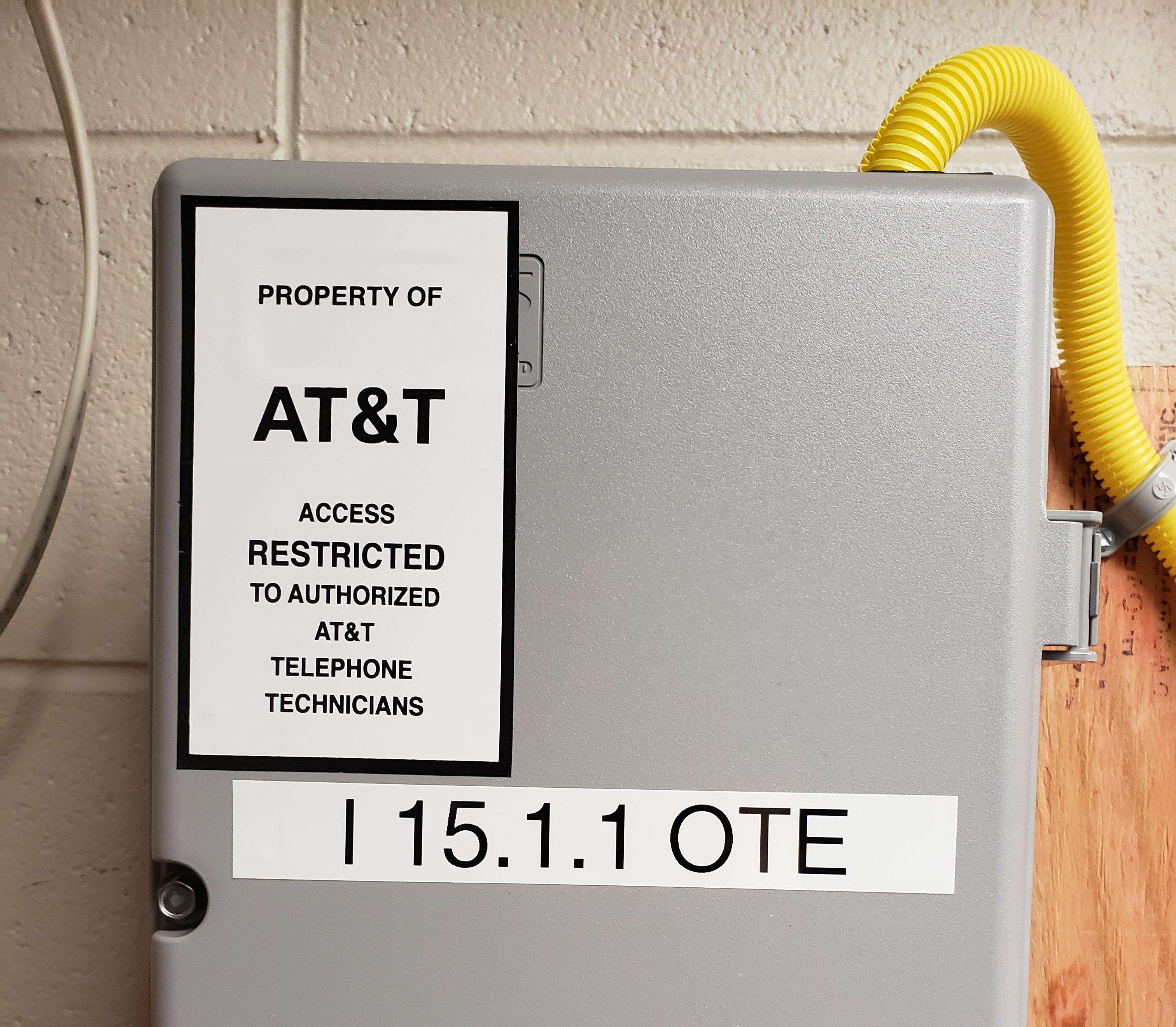

This is an ATT device on the east wall.
This is an ATT device on the east wall.
This is another view of the white ATT device on the east wall.

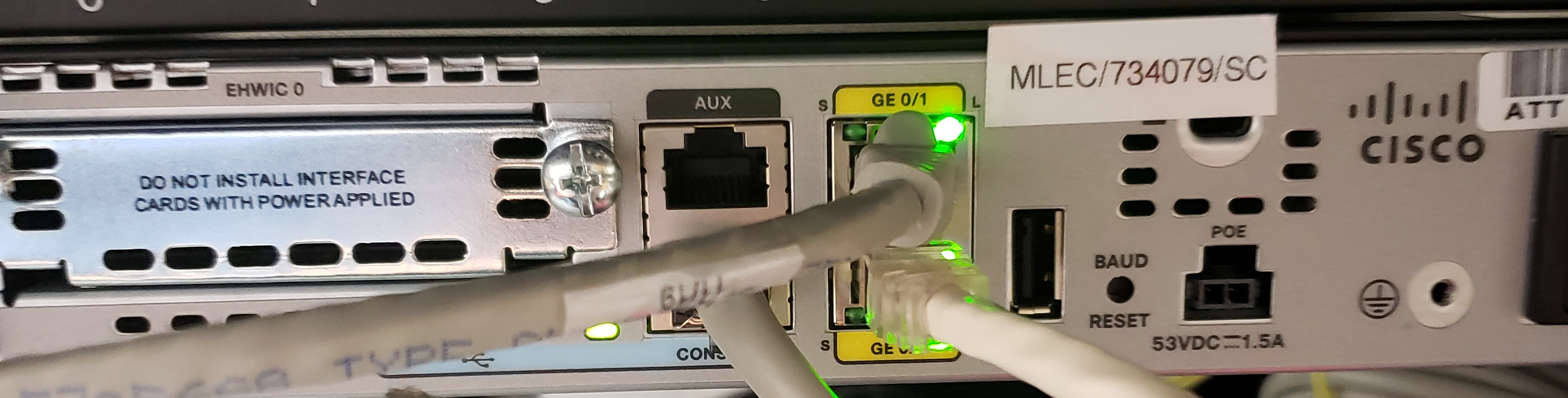

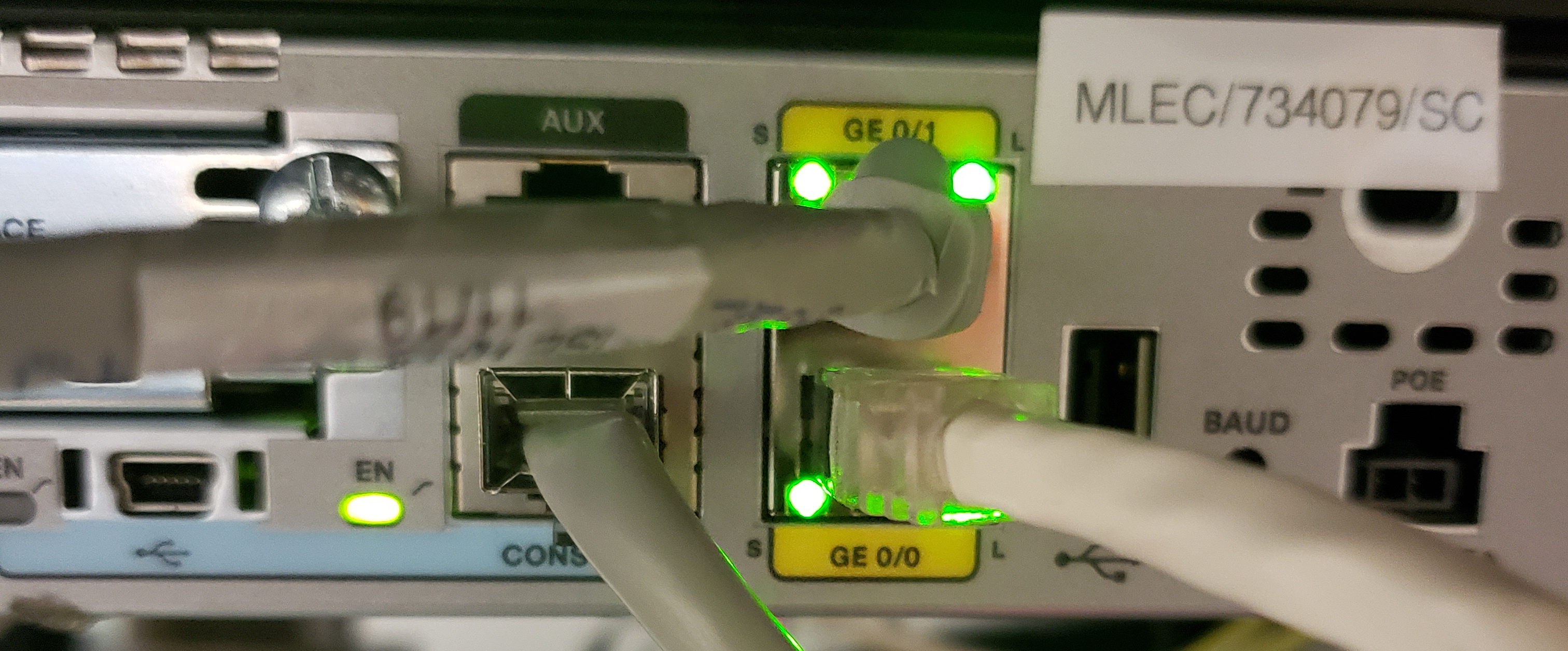

This is a close up of the ATT router in the rack. The top GE 0/1 port runs to the white ATT device on the east wall. The other ethernet cable runs from the GE 0/0 port to the back of our FortiNet device.
This is another view of the ATT router in the rack.
